High precision digital pressure sensor

RSIND single crystal silicon pressure transmitter adopts single crystal silicon sensor chip made by advanced MEMS technology, combined with exquisite production technology, to achieve high precision and ultra-high stability of the product.The embedded intelligent signal processing module realizes the perfect combination of pressure and temperature compensation, providing reliable measurement accuracy and excellent long-term stability under a wide range of temperature changes.

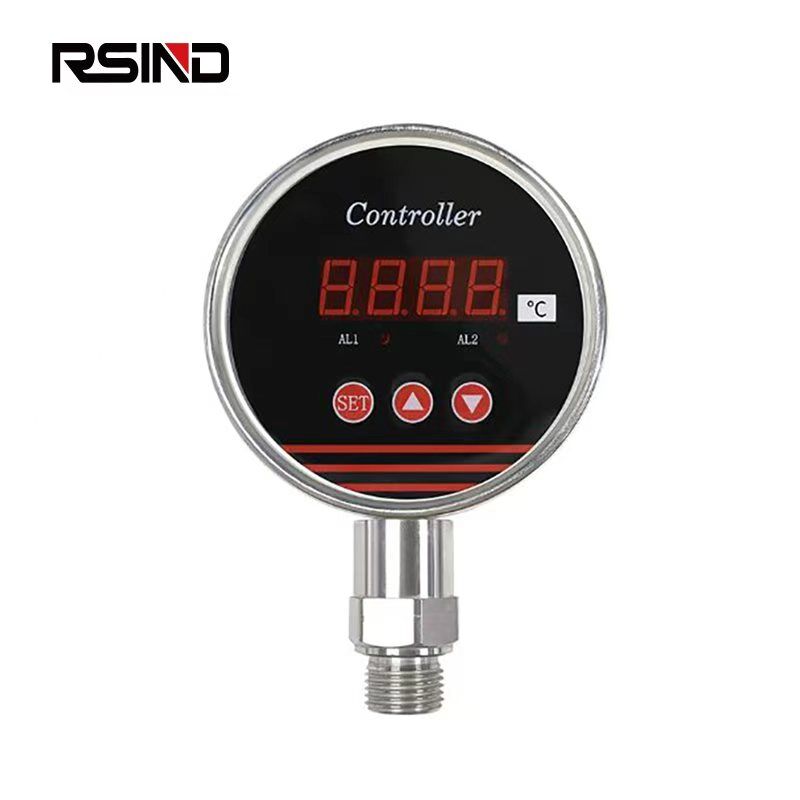

Digital temperature sensor, digital pressure sensor, digital liquid level sensor, from RSIND.

Digital temperature sensor, digital pressure sensor, digital liquid level sensor, from RSIND.

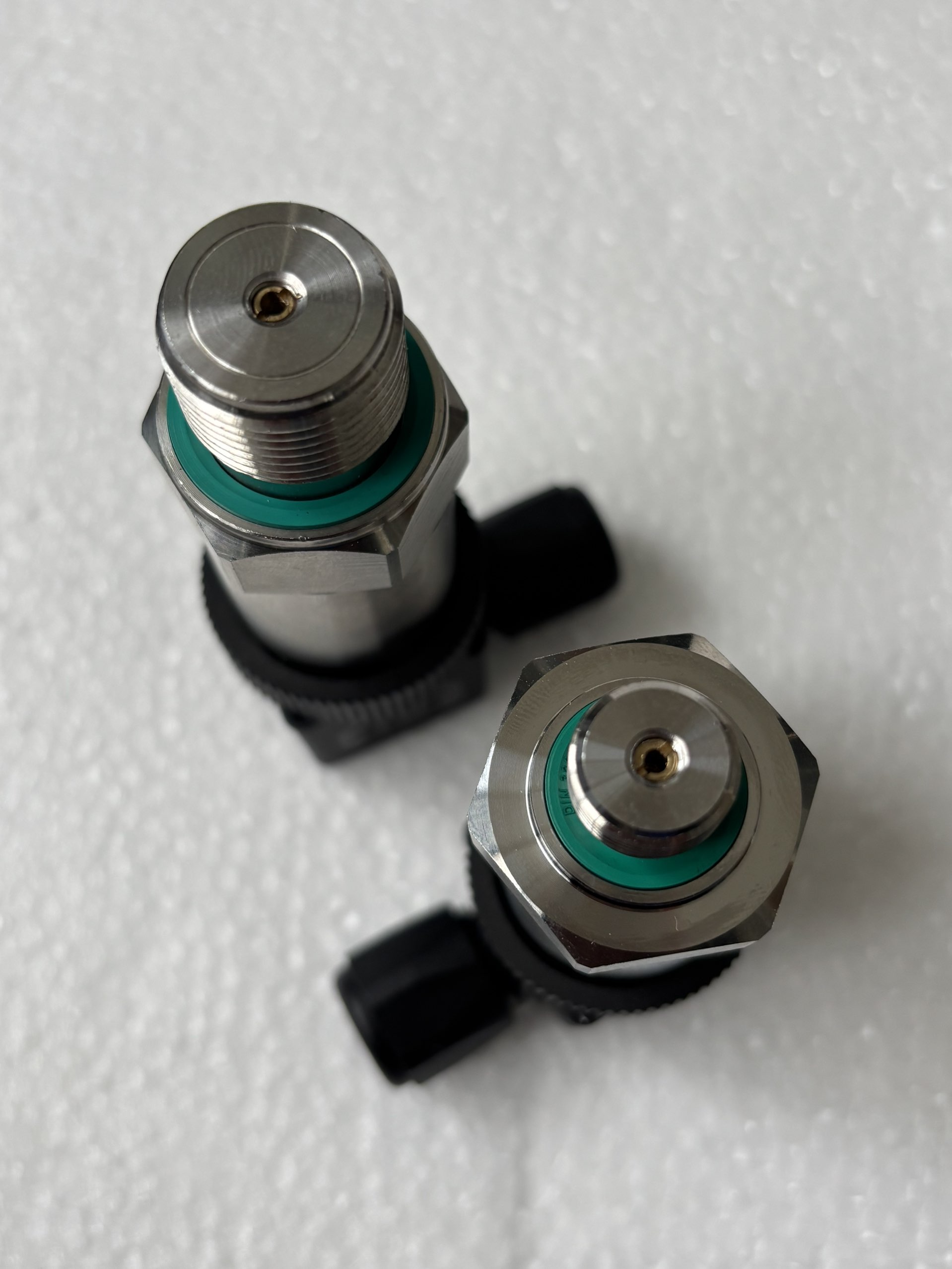

Consistency of sealing rings

We have made consistency adjustments to the sealing ring of the pressure sensor. At present, the sealing part of the pressure sensor has been fully covered in the ED groove, using FKM/FPM fluororubber with more reliable comprehensive performance. The advantage is that it can be tightened directly and can be completely sealed without the need for winding tape, as long-term use of winding tape can cause leakage. Therefore, this is a good adjustment. The threads involved include G1/2, G1/4, M14 * 1.5, M20 * 1.5, and we also accept customized threads (with certain quantity requirements)

Mini pressure sensor

Mini pressure sensor: small size, all stainless steel structure, maximum range up to 250Mpa, M12 * 1 wiring, can withstand up to 5 times pressure impact, can withstand high-frequency repeated impact without being damaged, suitable for all working conditions and industries, especially suitable for hydraulic test benches.

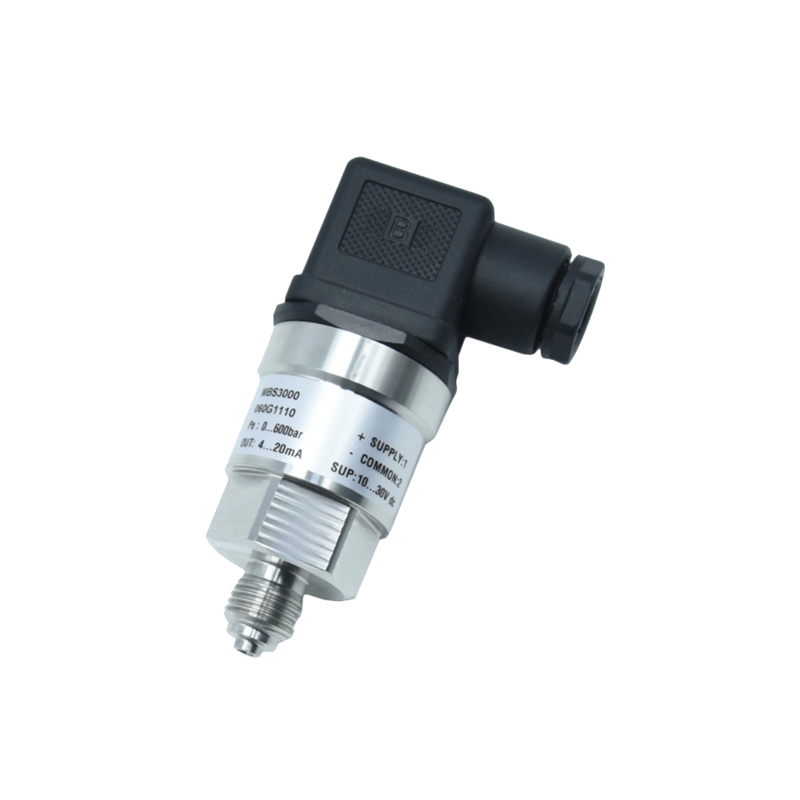

The pressure sensors and temperature sensors we provide have been jointly tested by multiple institutions and have provided authoritative reports from three parties.

The pressure sensors and temperature sensors we provide have been jointly tested by multiple institutions and have provided authoritative reports from three parties.

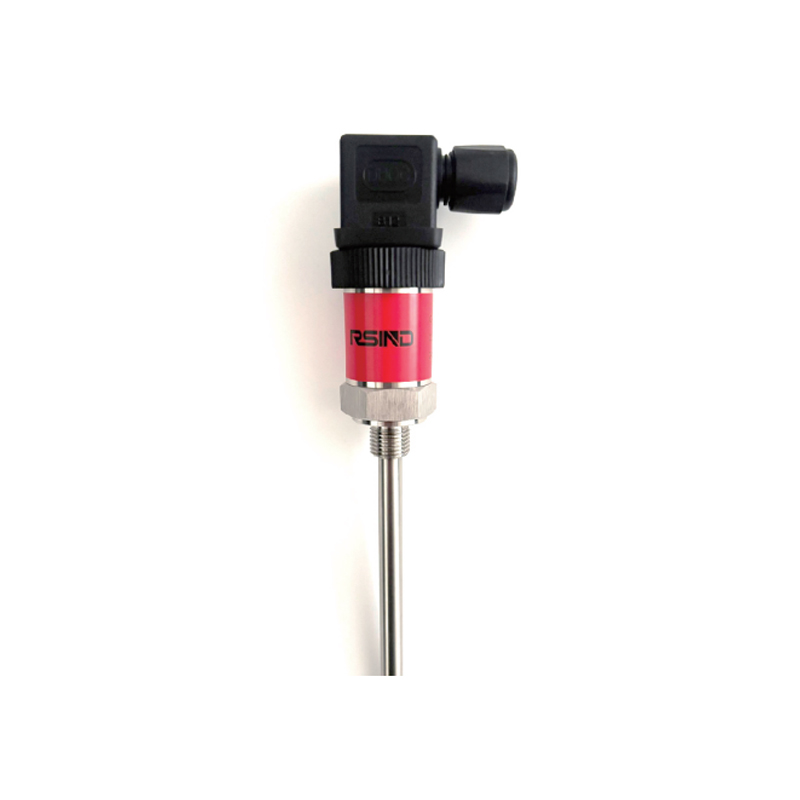

Various forms of temperature sensors.

RSIND Various forms of temperature sensors.

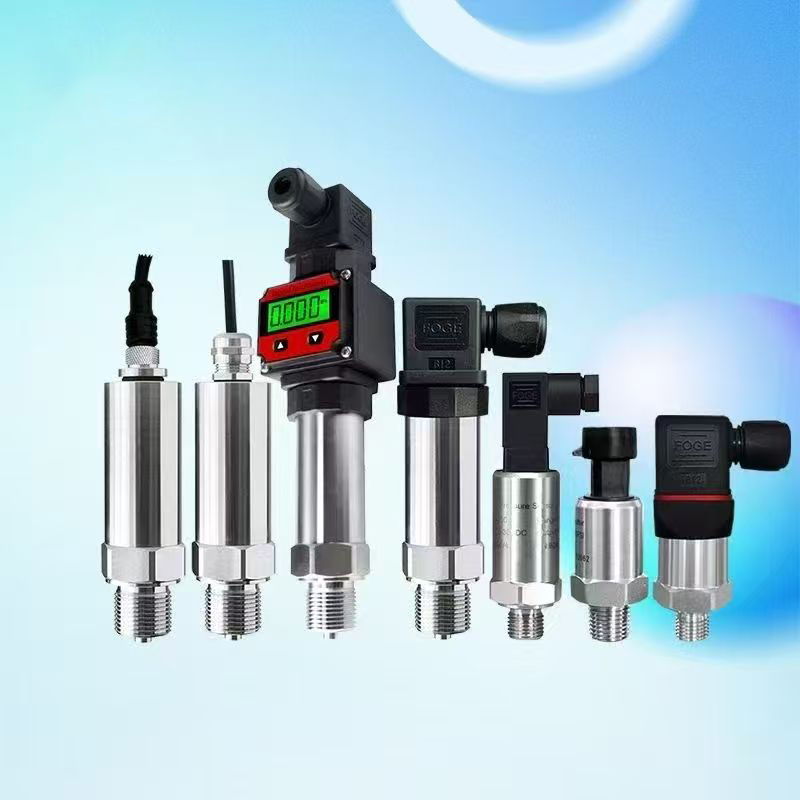

RSIND sensor

We have a variety of sensors, including pressure, temperature, liquid level, to meet daily industrial needs, and can also be customized with high precision, high pressure, variable range, etc. Output signal: 4-20mA, 0-5V, 0-10V, 0.5-4.5V, 1-5V, 1-6V, 0.1-10.1 or customized output can be completed.

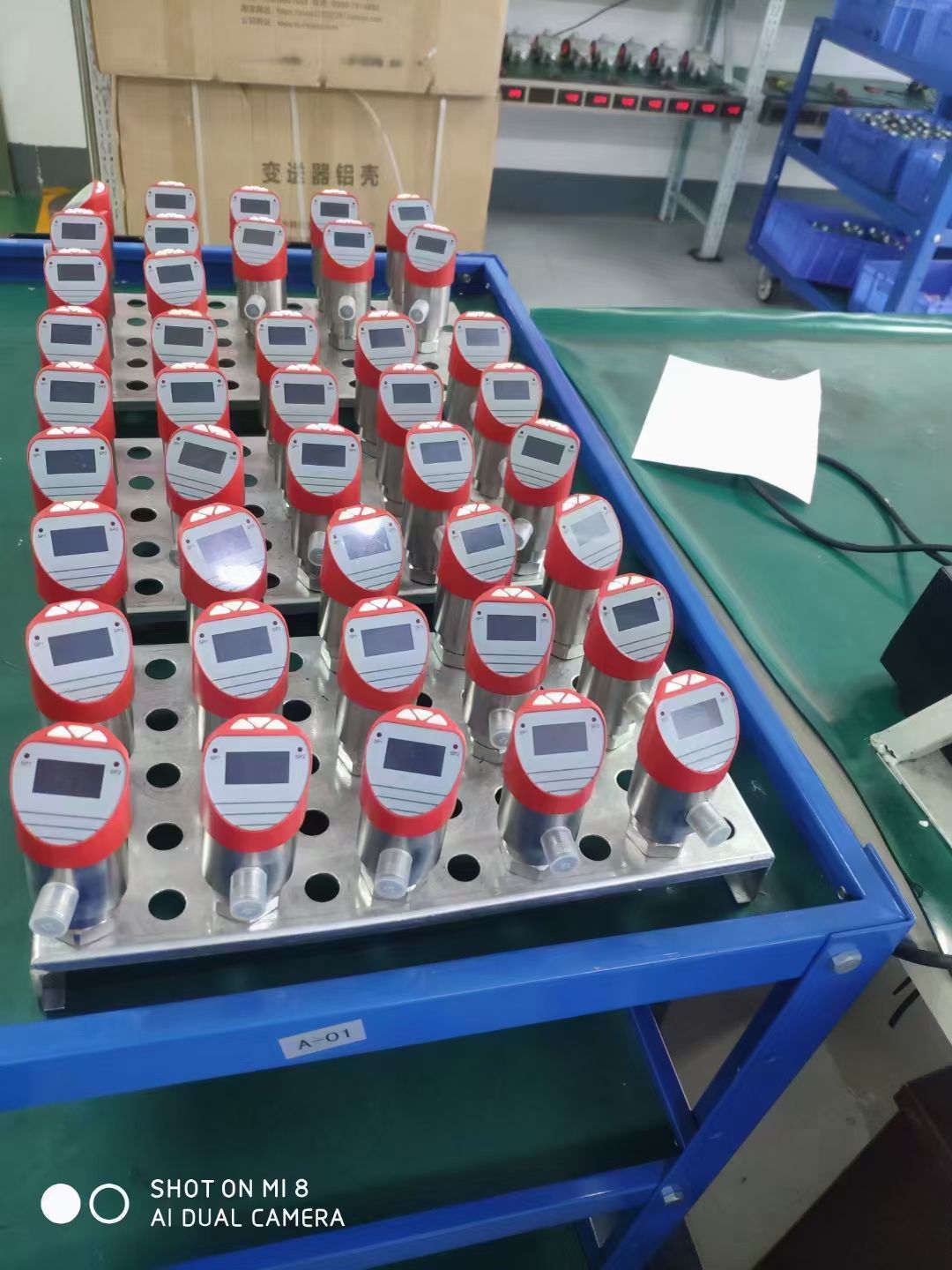

Temperature sensor inclined surface type

This digital temperature switch is used for temperature measurement, display, output, and control Integrated intelligent digital temperature measurement and control product. This product has a fully electronic structure, The front-end adopts a high-sensitivity core with PT100/PT1000, and the output signal is composed of High precision, low-temperature drift amplifier amplification processing, sent to high-precision A/D conversion Converter, converts into digital signals that can be processed by microprocessors, and performs calculations The processed signal controls two switches to measure and control the temperature of the control system. This intelligent digital temperature switch is flexible to use, easy to operate, and easy to debug, safe and reliable Widely used in hydropower, tap water, petroleum, chemical industry, machinery Measuring, displaying, and controlling the temperature of fluid media in industries such as machinery and hydraulic systems.

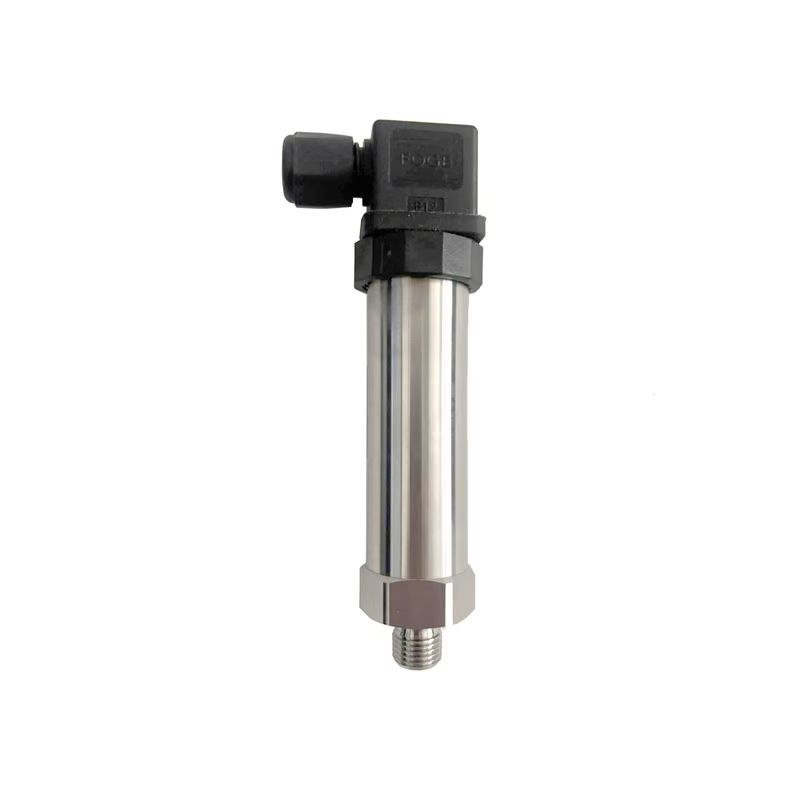

Pressure sensor with high precision of 0.1%.

The intelligent monocrystalline silicon pressure/dif- ferential pressure transmitter adopts a modular design with a microprocessor as the core and advanced digital isolation technology as an auxilia- ry in the circuit design, which makes the instrument highly anti-interference and stable. At the same time, the transmitter is compensated by a built-in temperature sensor, which improves measurement accuracy, reduces temperature drift, and has the characteristics of good long-term stability, high reliability, and strong self diagnostic ability. Struc- turally, users can easily calibrate, set up, and con- figure the transmitter through a HART communi- cation controller. Widely used in industrial fields such as petroleum, chemical, power, metallurgy, water, brewing, etc. For a long time, we have won unanimous praise from users for our excellent product quality and high-quality after-sales service.

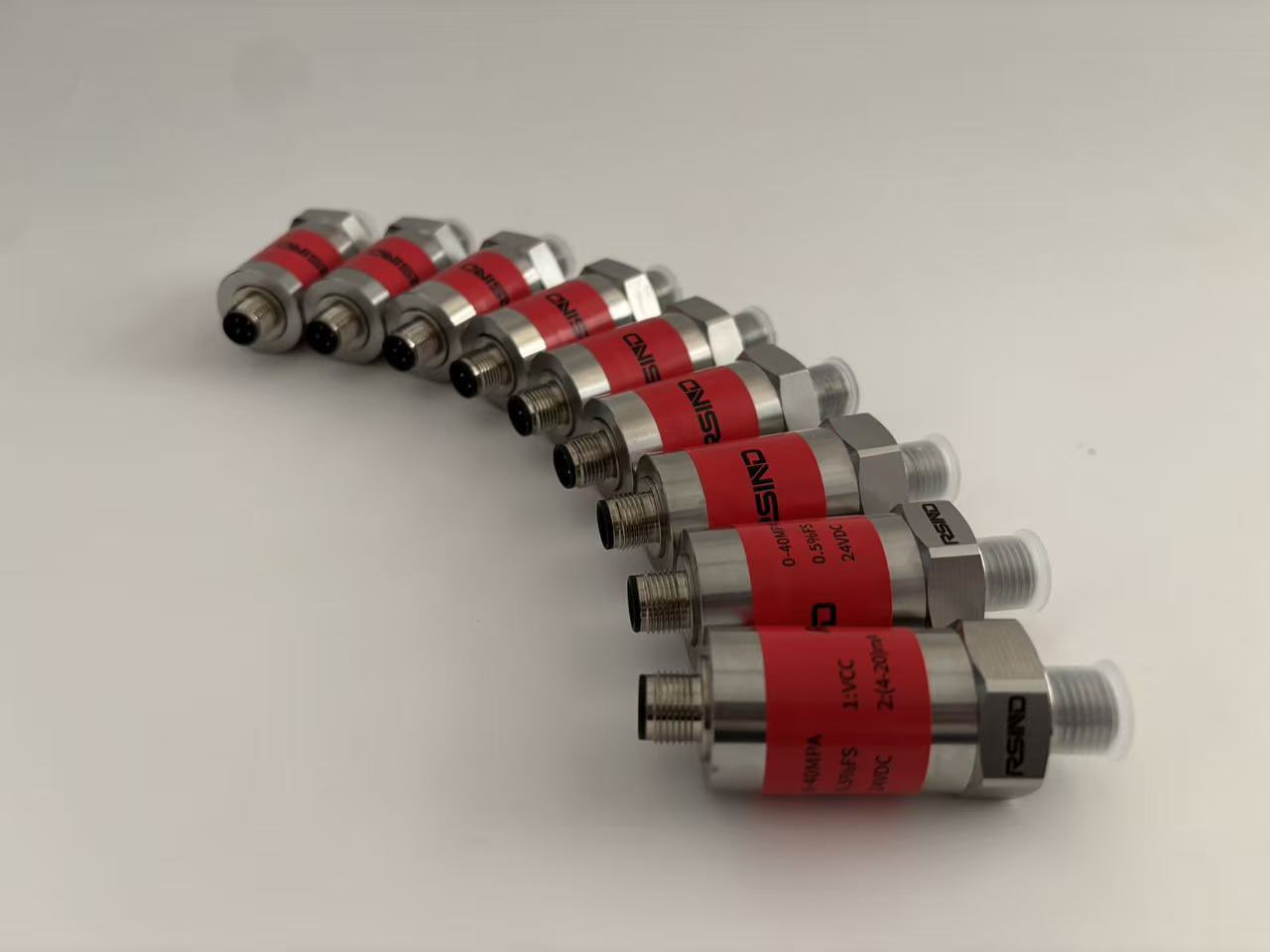

Spirit of RSIND company

Falling down and getting up, falling down and getting up again, failing time and time again, but never giving up. Through continuous innovation, we keep moving forward. This is the spirit of RSIND company. In a few weeks, we will launch a new product again. #sensor

Temperature sensor M12

Temperature sensor, M12 wiring, can specify the length of probe L to keep it stable below the liquid level or in gas for a long time. The all stainless steel design ensures its corrosion resistance and practicality. It uses PT100 temperature sensing elements to ensure stable and rapid signal transmission, and provides multiple thread and output models. At the same time, provides OEM manufacturing services, with a detection range of -200 ℃ to 660 ℃, or can be freely selected in this range, such as -50 ℃ to 100 ℃ or 0 ℃ to 300 ℃.
