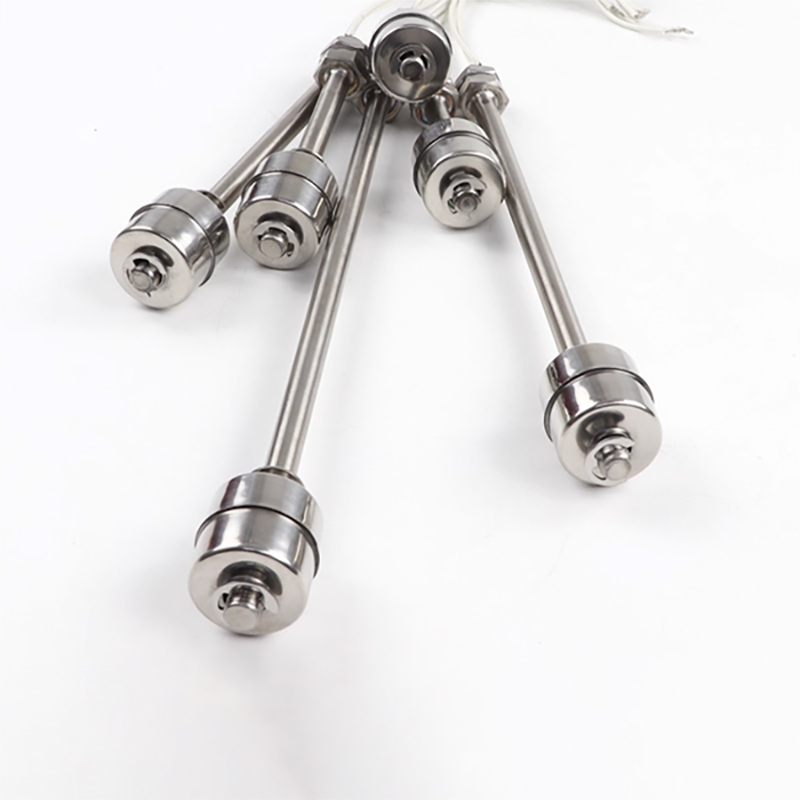

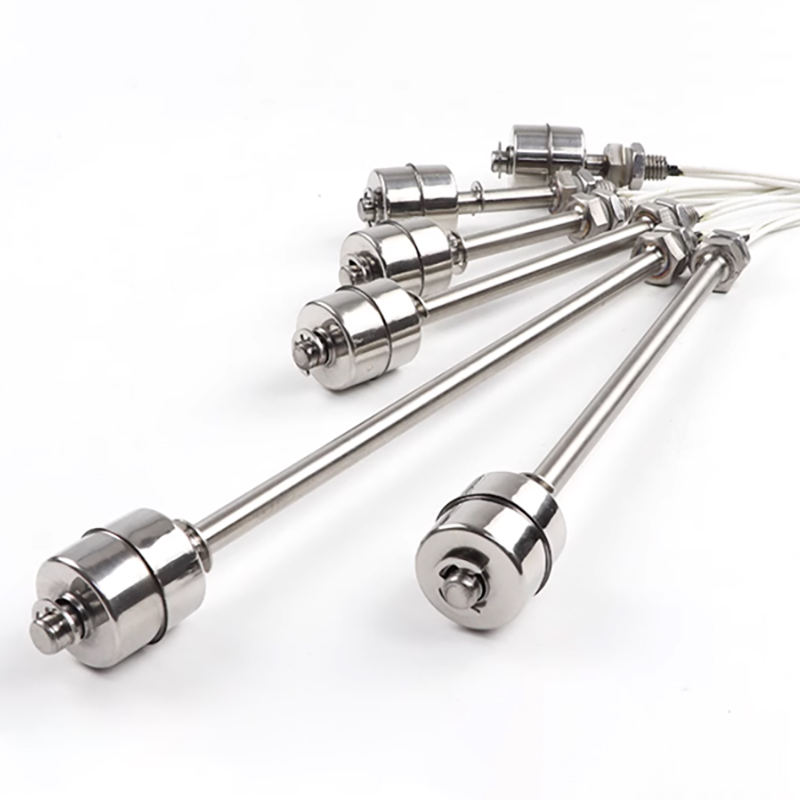

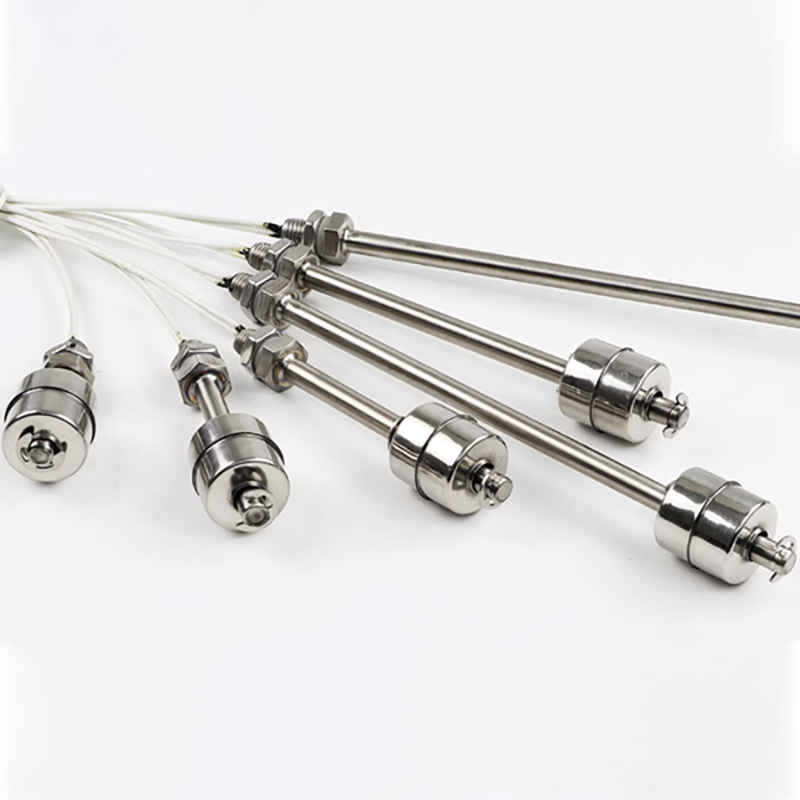

Float switch straight out line type

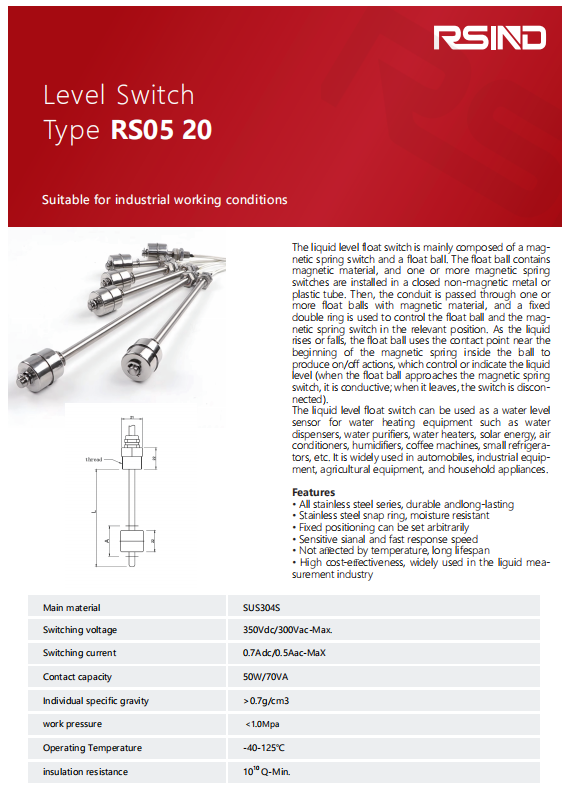

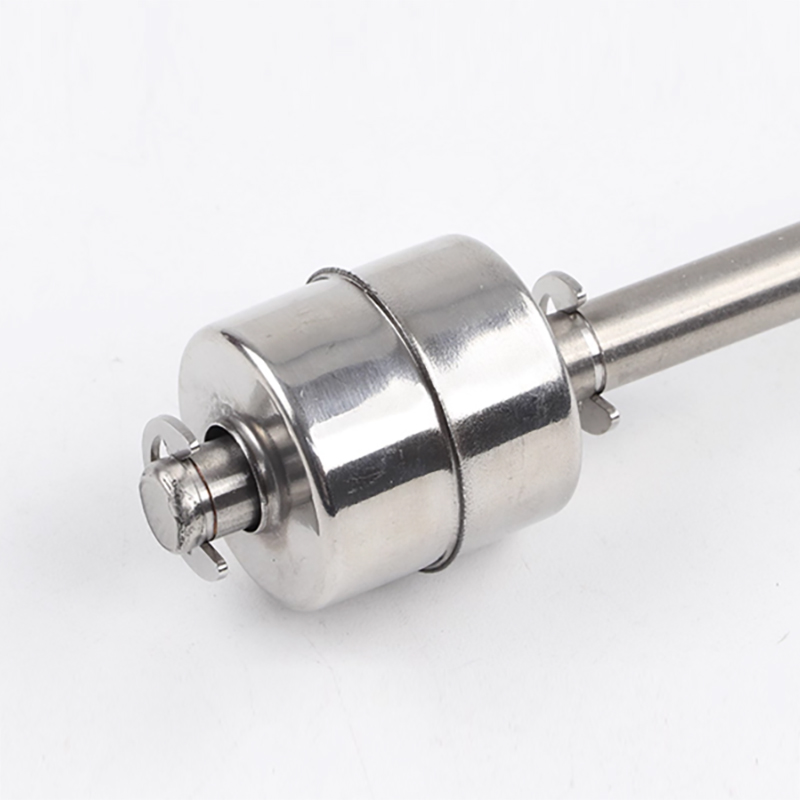

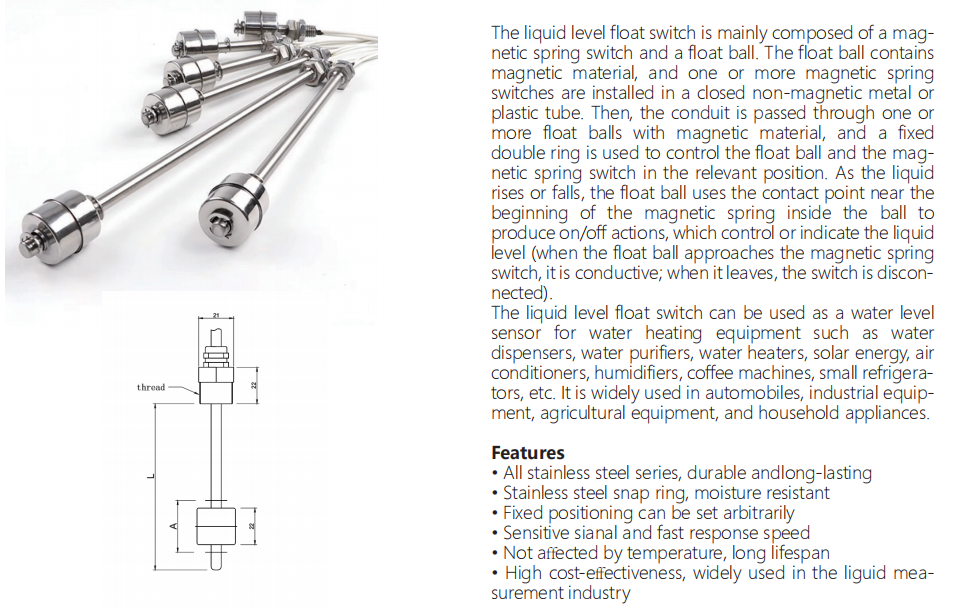

The liquid level float switch is mainly composed of a magnetic spring switch and a float ball. The float ball contains  magnetic material, and one or more magnetic spring  switches are installed in a closed non-magnetic metal or  plastic tube. Then, the conduit is passed through one or  more float balls with magnetic material, and a fixed  double ring is used to control the float ball and the magnetic spring switch in the relevant position. As the liquid  rises or falls, the float ball uses the contact point near the  beginning of the magnetic spring inside the ball to  produce on/off actions, which control or indicate the liquid  level (when the float ball approaches the magnetic spring  switch, it is conductive; when it leaves, the switch is disconnected). The liquid level float switch can be used as a water level  sensor for water heating equipment such as water  dispensers, water purifiers, water heaters, solar energy, air  conditioners, humidifiers, coffee machines, small refrigerators, etc. It is widely used in automobiles, industrial equipment, agricultural equipment, and household appliances.
